Comprehensive analysis of titanium ingots: production process, characteristics and application areas

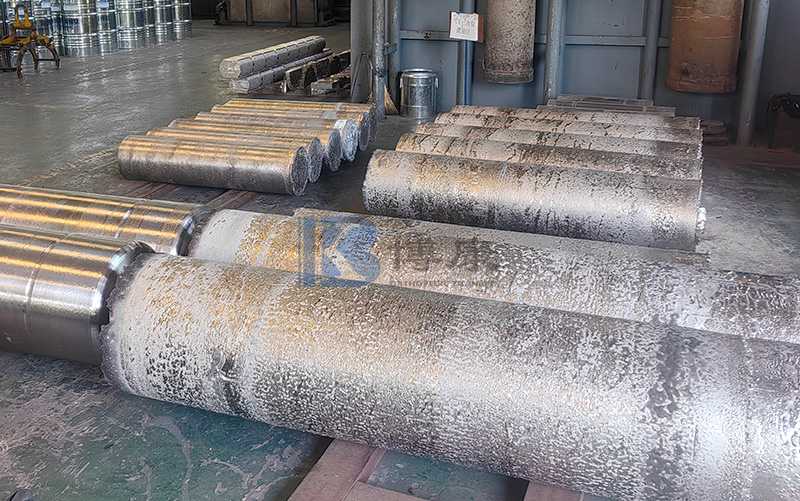

Titanium Ingot is an important intermediate product in the production of titanium materials. It is a large metal form cast after purification of titanium raw material through smelting process, which is used for subsequent processing into various titanium products such as plates, rods, wires and so on. The following is a detailed introduction about titanium ingot:

1. Production process of titanium ingot
Raw Material Source
Titanium Ingots are usually made from Titanium Sponge as the main raw material, supplemented by alloying elements (e.g., Aluminum, and Vanadium) to obtain titanium alloys with different properties.

Main Processes

Electron Beam Melting (EBM): High-energy electron beams are used to melt titanium raw materials with high purity for high-end applications.
Vacuum Arc Melting (VAR): A common process where the raw material is melted by arc heating under vacuum conditions and cast into ingots.
Plasma Arc Melting (PAM): Heating by plasma arc for the production of high performance titanium alloys.
Casting and cooling
After melting, the titanium liquid is poured into molds and cooled to form titanium ingots with certain shapes and specifications.

2. Characteristics of Titanium Ingot
High purity:
The production process of titanium ingot strictly controls the content of impurities (such as oxygen, hydrogen and nitrogen) to ensure the excellent properties of titanium.
Plasticity:
Titanium ingots can be further heat-processed (forged, rolled, etc.) into products of various shapes and sizes.
Wide range of property adjustments:
By adding different alloying elements, pure titanium (e.g. TA1, TA2) or titanium alloys (e.g. TC4, TC21) can be produced.

3. Titanium Ingot Specifications
The size and weight of titanium ingots vary considerably depending on the application:

Shape: usually cylindrical or rectangular.
Diameter: 200mm ~ 1200mm range.
Weight: from tens of kilograms to several tons, depending on the production equipment and user needs.

4. The use of titanium ingots
Titanium ingot is the basic material of titanium products, its main application areas include:

Aerospace: Used to manufacture aircraft structural components, engine parts, etc.
Industrial applications: such as chemical equipment (reactors, heat exchangers), marine engineering (hull components).
Medical field: processed into implants, medical devices, etc.
High-end consumer products: used in clocks and watches, eyeglass frames and other high value-added products.

5. Classification of Titanium Ingots
According to the composition and performance requirements, titanium ingots can be divided into:

Pure titanium ingot:
Mainly composed of titanium, with excellent corrosion resistance and good plasticity.
Commonly used grades: GR1, GR2, GR3, GR4.

Titanium alloy ingot:
Add aluminum, vanadium, zirconium and other alloying elements to improve strength, heat resistance and other properties.
Commonly used grades: GR5, GR23.

6. Where titanium ingots fit into the production chain
Upstream: Titanium sponge production.
Ingot: Titanium sponge is melted to form titanium ingots.
Downstream: Titanium ingots are thermally processed (forged, rolled, etc.) to become titanium products, such as plates, rods and wires.

Summary
Titanium ingot is the core intermediate product of titanium production, and its quality directly affects the performance of subsequent products. In industrial, aviation, medical and other high-end fields, the high purity and high performance of titanium ingot is the key to ensure the application effect.
